Details
FULL GAS EVERYWHERE
If you want to win a Gravel race, this is the bike for you. This is the off-road DOGMA.
The versatile GREVIL F is ready for anything. It can accommodate any wheel or tire combination, adapting to your every need, and giving you the freedom to push the limits and compete with yourself.
Even off-road, aerodynamics count. Every watt saved brings you closer to victory, so the GREVIL F’s design puts a major focus on aerodynamics and rigidity. If you want to triumph on every terrain, this is the bike for you.
*The image is of the off-road DOGMA. IMAGE COLOR REFERENCE ONLY.
INNOVATION:
- AN AERO GRAVEL BIKE?
Aerodynamics always counts. Gravel races often exceed 200km, with speeds reaching 70km/h, every watt saved brings us a little bit closer to victory.
- FORK FLAP
Fork Flap: Stabilizes the flow of air on the front end and greatly improves the aerodynamic penetration coefficient.
- FORK FLAP
Fork Flap: Stabilizes the flow of air on the front end and greatly improves the aerodynamic penetration coefficient.
- TICR
The complete integration of all cables offers aerodynamic improvement and allows for greater ease when loading bags.
- GRAVEL GEOMETRY
Differentiated geometry and rake ensure the same trail and the same control across all frame sizes.
- Reach and stack: Compared to a traditional road bike, the GREVIL F has a shorter reach and higher stack to create an elongated position, offering better comfort and better handling
- An increased seat tube angle allows for greater wheel clearance
- Modified fork angle and Rake ensure better handling and riding comfort
- Chain stays: Measuring between 422-425mm. This provides the best compromise between responsiveness and comfort. Compatible with 700c or 650b wheels.
- TWIN ARMS
Maximum energy transmission and vibration absorption
The right chain stay is rotated downwards, as is the right seat stay, to have both rear triangles symmetrical with a uniform response to pedal strokes. Different connection points for the seat stays allow the seat tube to absorb impacts coming from the rear wheel in a more uniform way.
- T700 CARBON FIBER
For the GREVIL F, the carbon fiber used is T700 from Toray, the best carbon fiber manufacturer in the world. We combine the perfect mix of different types of HM (high modulus) and HT (high strength) fibers to achieve the ultimate balance of rigidity and vibration absorption.

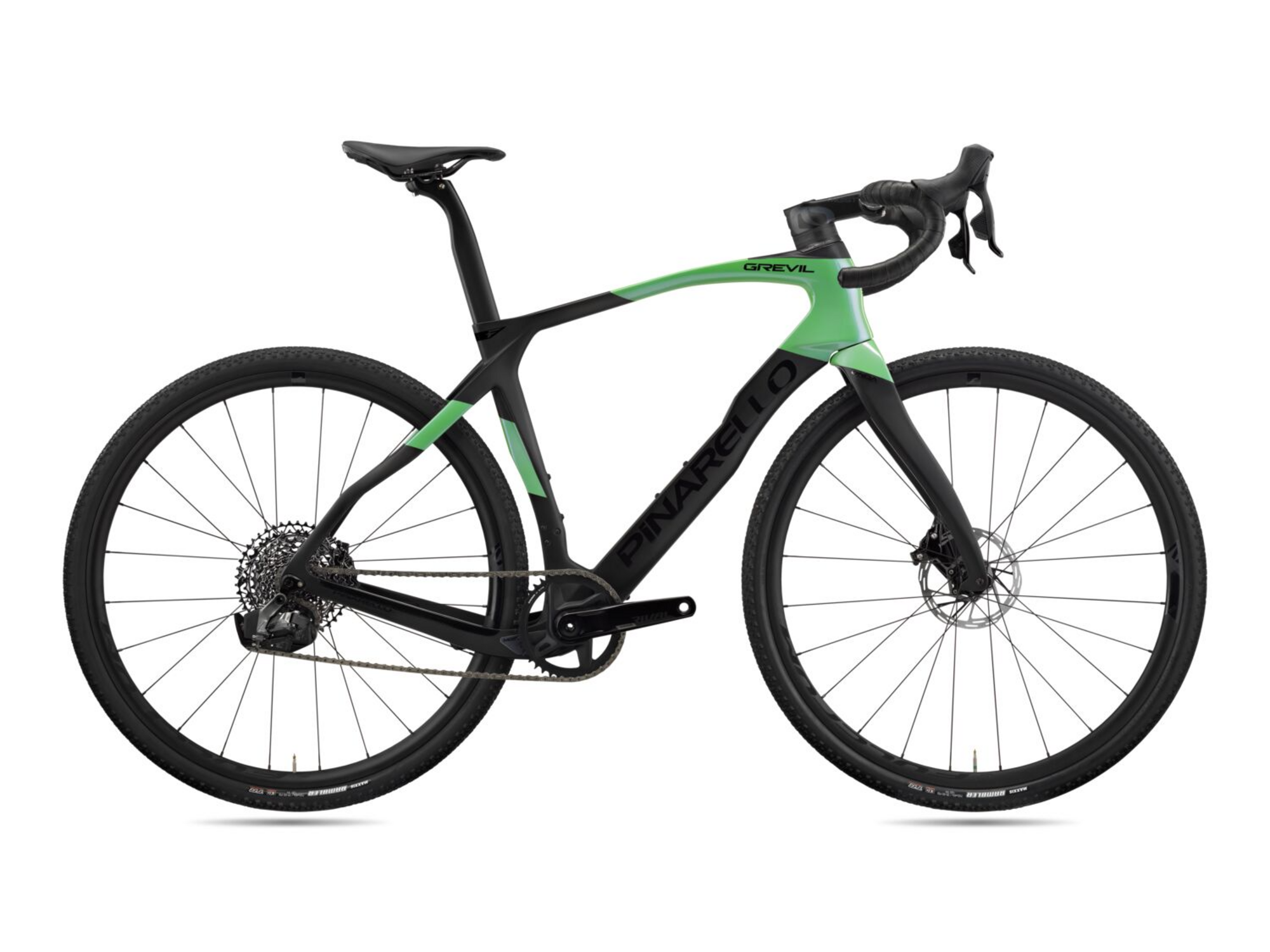

* The groupset/wheelset on the picture might differ from the bike specification
Frame Size | 47 | 50 | 53 | 55 | 57.5 | 60 |
---|---|---|---|---|---|---|
Seattube Center - End (mm) | 410 | 445 | 475 | 500 | 520 | 550 |
Top Tube Center (mm) | 520 | 535 | 547 | 560 | 577 | 597 |
Seat Tube Angle | 74.5° | 74° | 73.75° | 73.5° | 73° | 72.5° |
Headtube Angle | 70.25° | 70.5° | 70.75° | 71.75° | 72° | 72.25° |
Chainstay (mm) | 422 | 422 | 422 | 425 | 425 | 425 |
Headtube (mm) | 120 | 135 | 155 | 165 | 180 | 200 |
BB Drop (mm) | 72 | 72 | 67 | 67 | 67 | 67 |
Fork Rake (mm) | 55 | 55 | 55 | 50 | 50 | 50 |
Forke Height (mm) | 395 | 395 | 395 | 395 | 395 | 395 |
Reach (mm) | 360.1 | 367.8 | 374.4 | 382 | 389.7 | 398.5 |
Stack (mm) | 548.4 | 563.5 | 578.4 | 593.5 | 608.8 | 628.8 |
Specs
Frame | TORAYCA™ T700 UD Carbon Road Frame |
---|---|
Fork | Onda fork with forkflap™, tapered head tube |
Wheels | MOST Ultrafast Carbon DB |
Tires | Maxxis Rambler 700x40c 120tpi EXO TR |
Bottom Bracket | Sram Dub Italian Thread |
Crankset | SRAM Dub Rival AXS |
Shifters | SRAM Rival Etap AXS 1x12 |
Front Derailleur | SRAM Rival eTap AXS |
Rear Derailleur | SRAM Rival eTap AXS |
Cassette/Freewheel | SRAM XG 1250 |
Chain | SRAM Rival 12S |
Brakes | Rival AXS Flat Mount |
Handlebars | MOST Jaguar GR TiCR |
Tape/Grips | MOST Ultragrip Evo 3mm - Black |
Stem | MOST Tiger Alu TiCR |
Seatpost | Carbon Aero Seat Post |
Saddle | Most Aircross |
Pedals | Sole Separately |
* Subject to change without notice.
Videos
Introducing the Falcon XR/XRV | Bell Helmets
The Falcon XR draws on the DNA of the XR Spherical, launched in 2022 which is equipped with Spherical Technology™ powered by Mips®, deep road coverage and unmatched cooling. Falcon XR carries many similar characteristics such as Mips rotational impact integration, deeper shell coverage and excellent ventilation. Offering all-around performance and value for nearly any type of riding such as commuting, gravel riding during the day or at night, the Falcon XR is a must-have for the multifaceted cycling enthusiast. Check out https://www.bellhelmets.com/ for more information on any of our products. Follow us on IG: https://www.instagram.com/bellhelmets_bike/ Like us on FB: https://www.facebook.com/BellBikeHelmets/ Follow up on TikTok: https://www.tiktok.com/@bellhelmets
Part Numbers
Option | MPN | Store SKU |
---|---|---|
Champagne / 47 | D1691252165-00013 | |
Champagne / 50 | D1691252165-00014 | |
Champagne / 53 | D1691252165-00015 | |
Champagne / 55 | D1691252165-00016 | |
Champagne / 57.5 | D1691252165-00017 | |
Champagne / 60 | D1691252165-00018 | |
Iceland Black / 47 | D1691252165-00001 | |
Iceland Black / 50 | D1691252165-00002 | |
Iceland Black / 53 | D1691252165-00003 | |
Iceland Black / 55 | D1691252165-00004 | |
Iceland Black / 57.5 | D1691252165-00005 | |
Iceland Black / 60 | D1691252165-00006 | |
Radiant Aura / 47 | D1691252165-00007 | |
Radiant Aura / 50 | D1691252165-00008 | |
Radiant Aura / 53 | D1691252165-00009 | 210000148458 |
Radiant Aura / 55 | D1691252165-00010 | |
Radiant Aura / 57.5 | D1691252165-00011 | |
Radiant Aura / 60 | D1691252165-00012 |
